Specifications

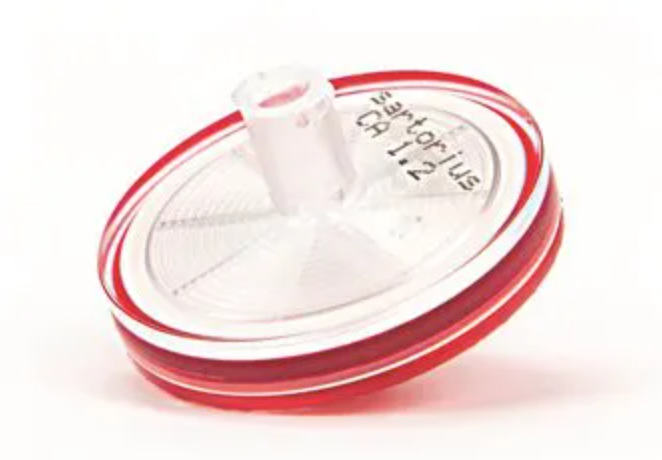

Minisart® RC|SRP|NY|PES- with 4|15|25mm ∅ Membrane Filtration Area

: Housing material Polypropylene (PP)

Membranes

: RC = Regenerated Cellulose

: NY = Polyamide|

: SRP = Hydrophobic PTFE = Polytetrafluoroethylene (PES = Polyethersulfone)

: PES  = hydrophobic PES

Glass fiber prefilter

: NY Plus: Ultrapure quartz, 0.7µm particle retention

Max. operating pressure

: RC | SRP | NY: 4.5bar|65psi

: PES - : 2.0bar|29psi (IN - OUT) or 0.5bar|7.2psi (OUT - IN)

 Housing burst pressure ≥ 7 bar | 102 psi

Max. temperature 60°C

Sterilization

: Non-sterile Minisart®

 RC, SRP and NY can be can sterilized by autoclaving or by using ethylene oxide (EO).

: Non-sterile Minisart®

 PES- can be sterilized by ethylene oxide or gamma irradiation
